Large-Format Machining
Large dies, molds, fixtures, weldments and industrial components supported by substantial machine travel and crane capacity.
Windsor, Ontario · Serving Canada & the U.S.
Large-format CNC machining built for demanding work.
Simultaneous 5-axis machining, heavy roughing, finishing, dies, molds, fixtures and large industrial components.
5-AxisSimultaneous machining
40 TonHeavy lifting capacity
4,500 mmMaximum X travel listed
Machining capabilities
Capacity for the jobs that don't fit everywhere else.
5-Axis Machining
Full simultaneous 5-axis and 3+2 machining for complex geometry, angled features and fewer setups.
CAD/CAM & Programming
Advanced CAD/CAM support for 2D, 3D and multi-axis machining, including overflow and off-site programming work.
Experience across materials & industries
From castings and hardened steel to aluminum and large weldments.

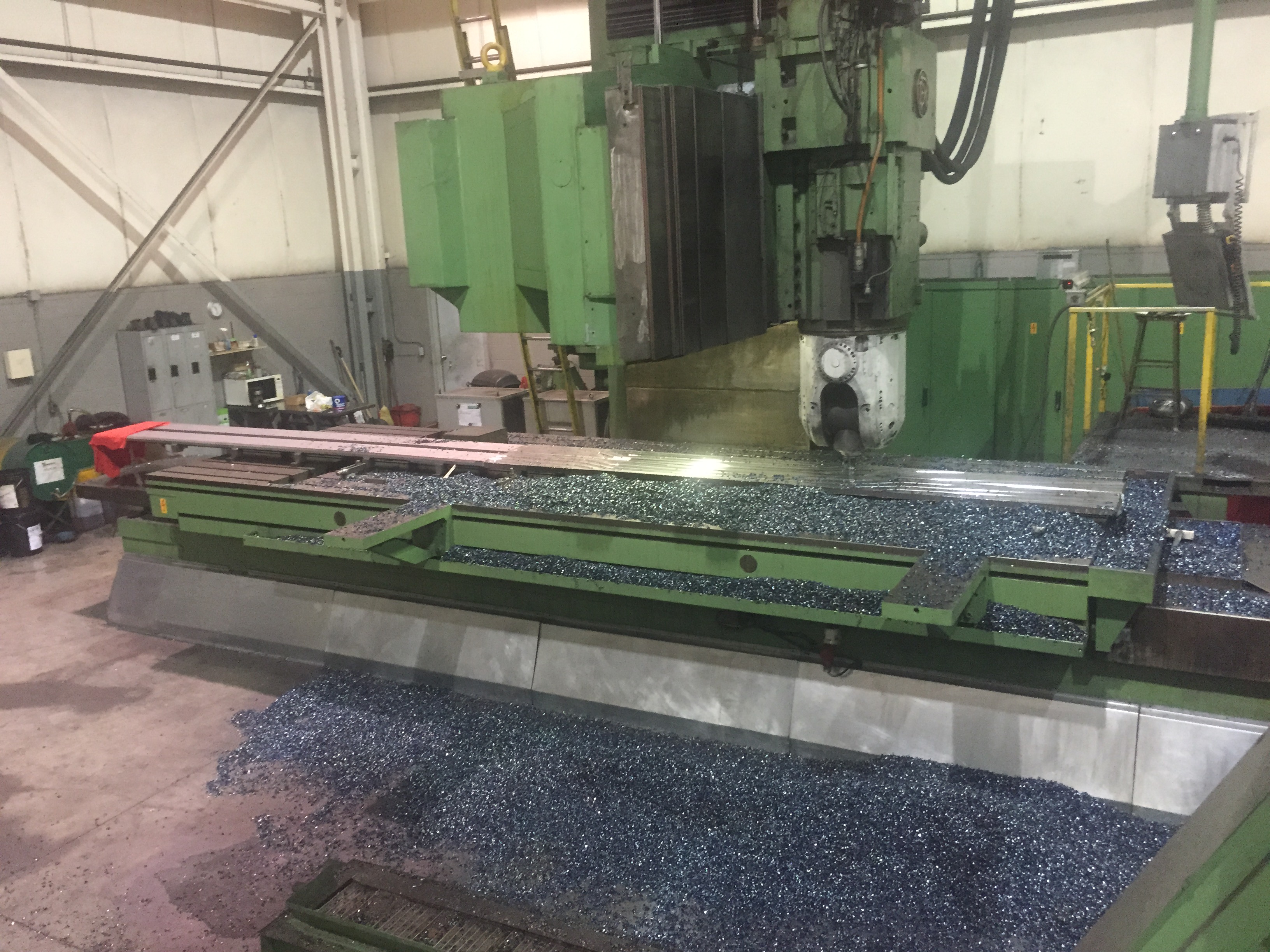

Automotive, aerospace, defence and industrial work with experience in dies, molds, fixtures and complex one-off components.
Featured equipment
Serious machining capacity.

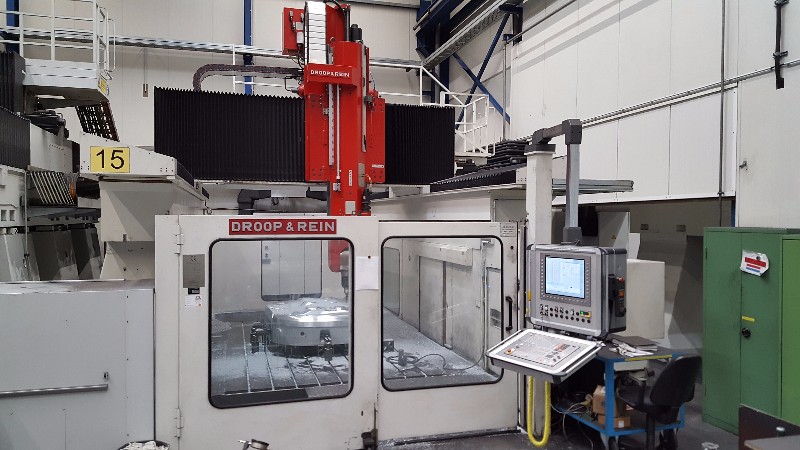

Droop & Rein FOG2500
- X / Y / Z
- 2,540 / 2,540 / 1,200 mm
- 5-axis
- B ±90° · C ±180°
- Control
- Heidenhain TNC 640
- Accuracy
- ±0.01 mm

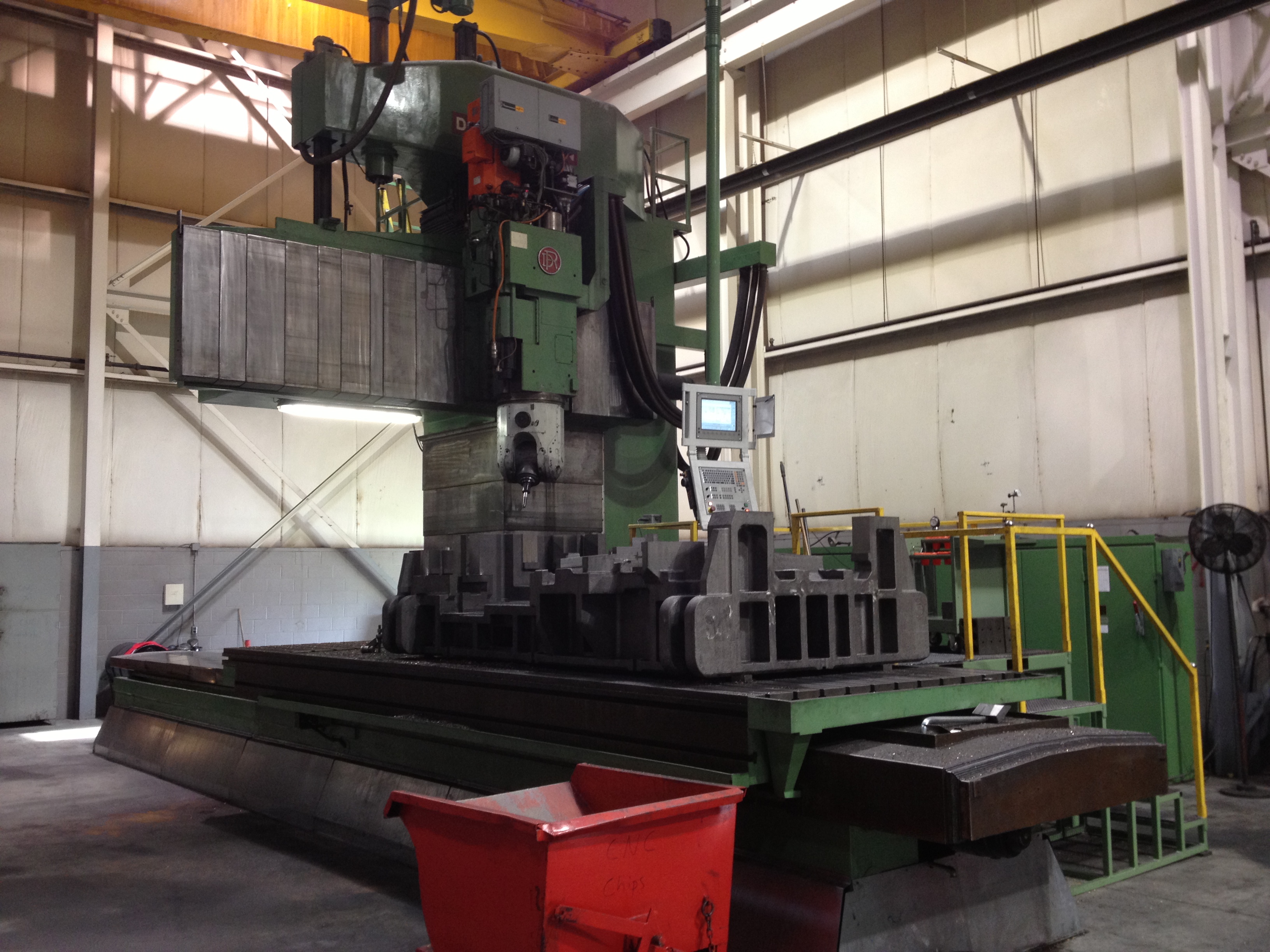

Droop & Rein LFAS2000
- X / Y / Z
- 4,500 / 1,800 / 1,500 mm
- 5-axis
- A ±90° · C ±360°
- Control
- Heidenhain iTNC 530
- Table load
- 40 ton
Equipment List
| Machine | Travel / Capacity | Control | Highlights |
|---|---|---|---|
| Droop & Rein FOG HS / FOG2500 | 2,500 × 2,500 × 1,200 mm 15,000 kg table capacity | Heidenhain TNC 640 | Simultaneous 5-axis · HSK-100 · 10,000 rpm · 30-tool ATC |
| Droop & Rein LFAS2000 | 4,500 × 1,800 × 1,500 mm 40-ton table load | Heidenhain iTNC 530 | Simultaneous 5-axis · A ±90° · C ±360° · high-torque spindle |
| Droop & Rein LFAS2000 | 3,300 × 1,800 × 2,050 mm 40-ton table load | Heidenhain TNC 430 | 3 exchangeable spindle heads · A ±90° · C ±360° |
| Droop & Rein FS130 | 1,847 × 953 × 807 mm 198 mm W-axis · 10-ton table load | Heidenhain TNC 426 | 3D / basic rotation · 45° knucklehead attachment |
| Droop & Rein FS80 | 1,050 × 450 × 450 mm 5-ton table load | Heidenhain TNC 360 | Compact CNC milling capacity |
Support Equipment
40-ton Kone overhead crane
1-ton jib crane
Hyster 45 forklift — 5,000 lb
2 × Kaeser SM10 screw compressors
Machine availability and specifications are subject to confirmation before final publication.
Machines in action
See our machining capabilities at work.
A selection of machining videos from our shop, including 5-axis work, large die components, mold roughing, blending and angled machining.
90 Degree + Angle Plate
Machining of a mold plate.
Blending
Blending of a hardened insert.
90 Degree
Machining the clamp feet on a large die shoe.
Angled Work
Machining a mold on compound angles.
3+2 Axis
5-axis machining on a die shoe.
Spindle Taper Grind
Re-grinding the spindle on one of our smaller mills.
Mold Roughing
Roughing of a mold on our Droop & Rein FS130.
Steel Shoe Roughing
Roughing of large steel shoes.
3D Blending
Blending of hardened details.
Plan Milling
Milling the backside of a casting with our 2-axis forkhead.
90 Degree
Side work on a die shoe.
Spade Drill
54 mm spade drill on a 90-degree angle.
Retrofitting & machine sales
Extend the life of proven machinery—or find the right machine for the job.
CNC Concepts began with machine-tool retrofitting and continues to support customers with control upgrades, mechanical modernization, replacement components and selected CNC machinery sales.

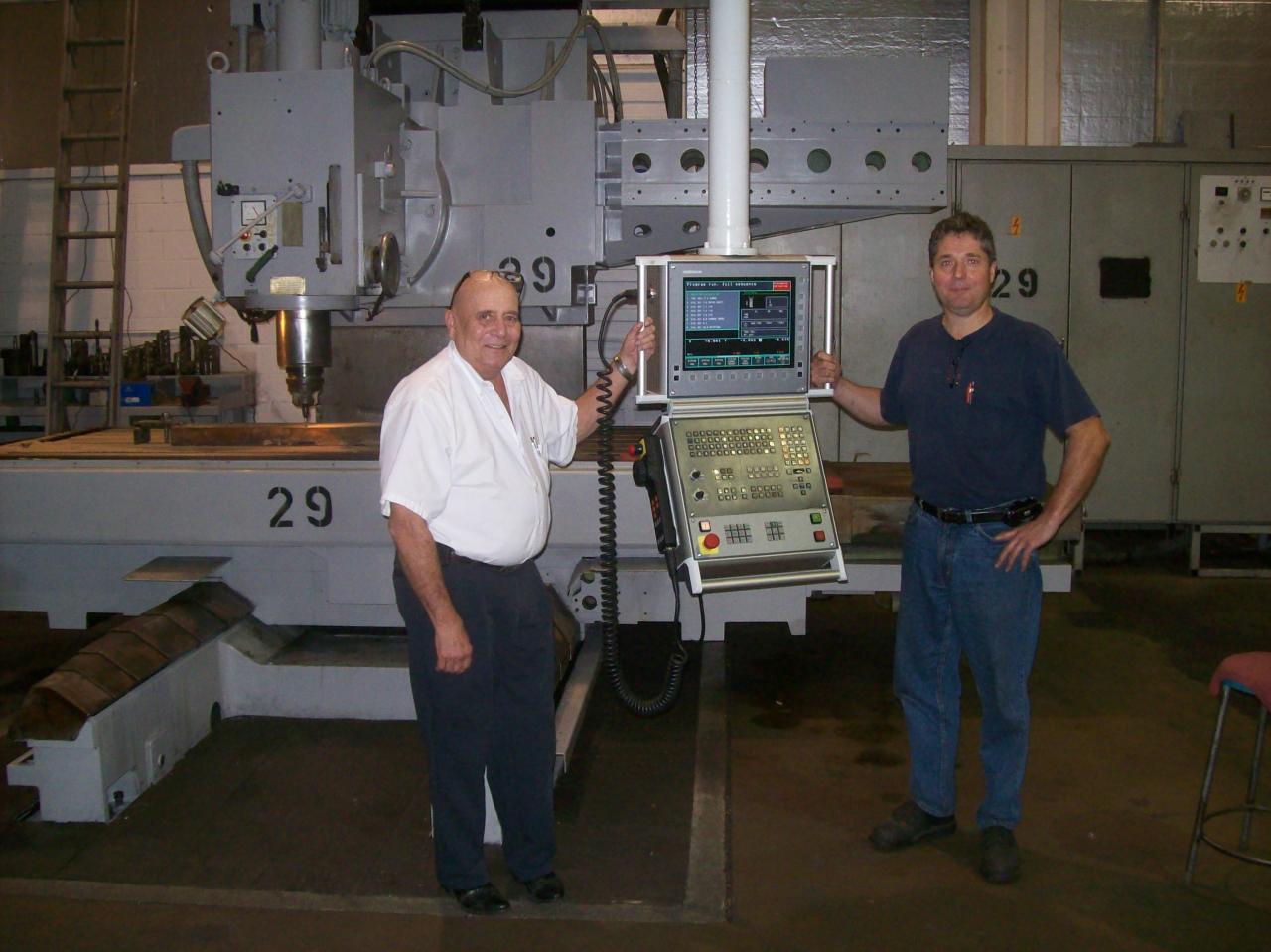

CNC retrofitting
Modern controls on proven machine platforms.
We have decades of experience updating older CNC machinery with modern controls and supporting hardware. Retrofit work can include CNC controls, drives, motors, feedback systems, spindle components and other electrical or mechanical upgrades.
- CNC control upgrades and integration

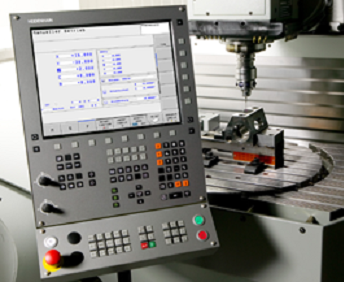

- Heidenhain control experience
- Drive, motor and feedback-system upgrades
- Spindle and machine-component replacement
- Machine evaluation and retrofit planning
CNC machinery sales
Large, high-quality CNC machinery sourced with practical experience.
We also have experience buying, selling, importing and exporting CNC machine tools, with particular familiarity in large European milling machines. Inventory changes, so available machines are handled by inquiry rather than maintained as a fixed catalogue.
- Used CNC milling machines
- Large-format European machine tools
- Machine sourcing and evaluation
- Import / export experience
- Retrofit options for selected machines
Why CNC Concepts
Practical machining experience, backed by large equipment.
CNC Concepts & Manufacturing Inc. provides custom CNC machining from Windsor, Ontario. The company combines large-format machining capacity with multi-axis capability, CAD/CAM programming and decades of experience around CNC machine tools and controls.
Our goal is simple: review the job quickly, give you a practical machining plan, and produce accurate parts without unnecessary complexity.
Request a quote
Have a part or project to discuss?
Send us your drawing or model along with material, quantity and required delivery date.
Email an RFQ
CNC Concepts & Manufacturing Inc.
1680 Kildare Road
Windsor, Ontario N8W 2W4
